Syncra SDC
Top characteristics
-
WiFi included - FREE APP ContrAll from smartphone. NO extra receiver -
ALERTS directly on your mobile in case of problems of the pump. -
Fully custom setting.
-
PERFORMANCE CHART -
PRODUCT DIMENSIONS
HOSE FITTINGS
EXPLODED VIEW
SYNCRA SDC 3.0 SYNCRA SDC 6.0 SYNCRA SDC 7.0 - 9.0

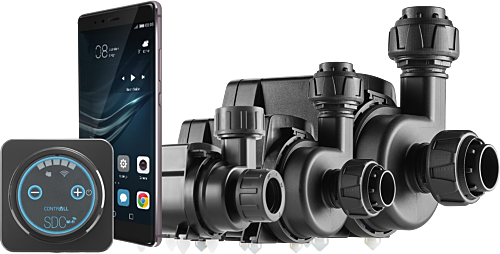

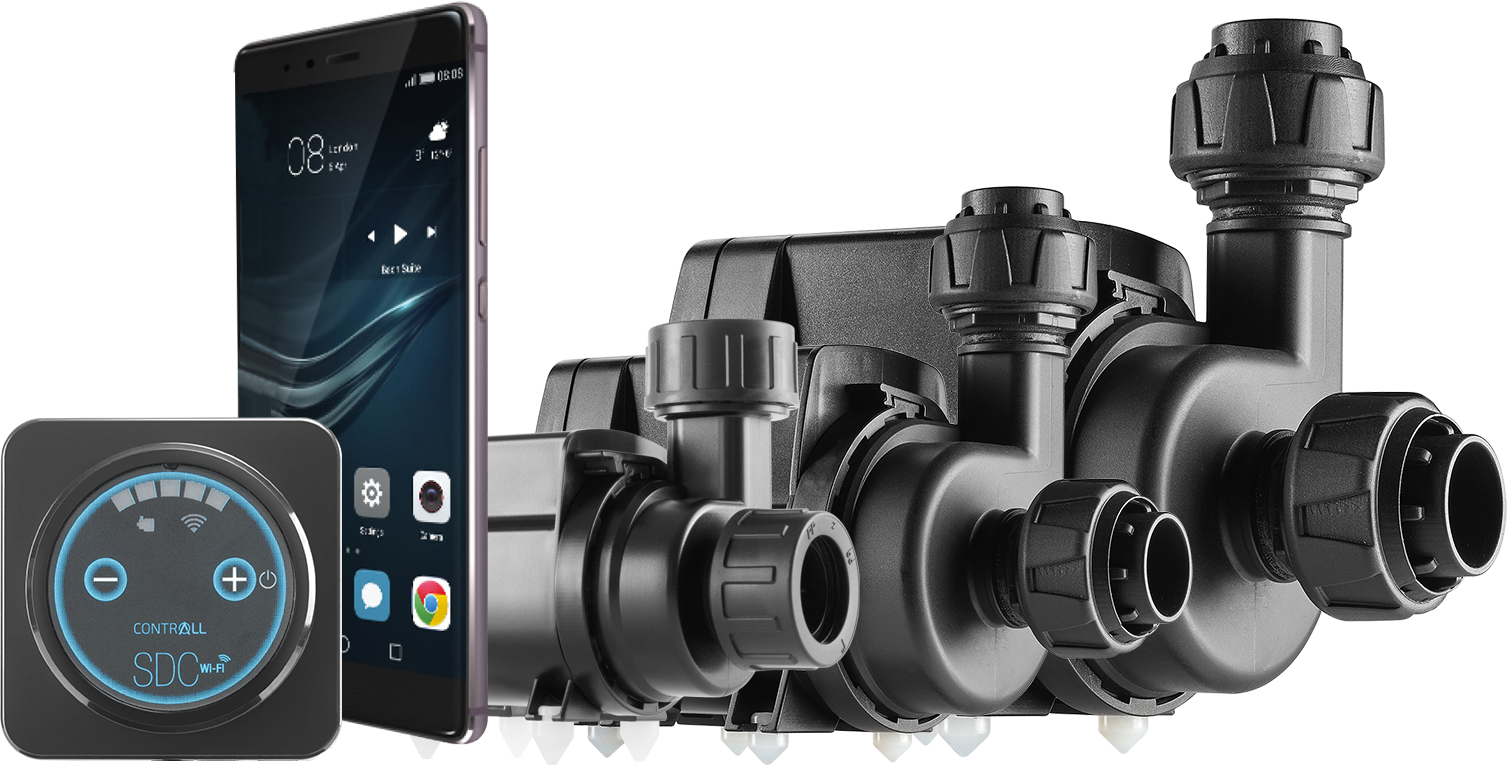

Syncra SDC
SYNCRA SDC are the latest generation of SYNCRA pumps and are equipped with integrated intelligence systems to meet the needs of advanced recirculating applications. With programming freedom, controllability is finally coupled with power, energy efficiency, inline or submersible use, and low heat production. SYNCRA SDC are managed by an easy to use controller and with the free download of the new ContrALL app these pumps can be kept under control and programmed wherever internet access is available. ContrALL includes an alert system which keeps the end user updated in real time with the status of the pump.
Key Features
|
SYNCRA SDC 3.0 - 6.0 - 7.0 - 9.0 |
CONTRALL | CONTROLLER |
| WET & DRY Application | FREE DOWNLOAD of ContrALL APP |
Included Direct controll of the pump |
| Hose fittings included |
ALERTS for: 1. Blocked rotor 2. Dry running 3. Loss of signal |
5 Preset modes - All the modes can be 100% customized according to the user's needs |
| Self cleaning impeller | Water temperature sensor | ECO - 7 hour preset at a customizable lower flow rate |
|
Thermal protection to prevent overheating |
Syncronize and customize setting for each individual pump connected |
MODE - 5 pre-set modes to create different water movements |
| Rubber feet |
PAUSE - 10 min pump stop which can be programmable at any time |
|
| Ceramic shaft |
Magnet support |
|
| 24 V - transformer included |
|
|
|
|||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
-
Q-Max 1450 us gph H-Max h 3.5-11.5 ft Voltage / Hertz 24v / 50-60hz Watt 10-40 W RSYD01U cable 2x1.5 + 2x0.5 3mt pvc + connector m16-4p -
Q-Max 1900 us gph H-Max h 6.5-16.5 ft Voltage / Hertz 24v / 50-60hz Watt 20-65 W RSYD03U cable 2x1.5 + 2x0.5 3mt pvc + connector m16-4p -
Q-Max 2500 us gph H-Max h 8.5-23.0 ft Voltage / Hertz 24v / 50-60hz Watt 30-95 W RSYD02U cable 2x1.5 + 2x0.5 3mt pvc + connector m16-4p -
Q-Max 800 us gph Voltage / Hertz 24 v / 50-60hz Watt 35 SYNCRA SDC 3.0 cable 2x1.5 + 2x0.5 3mt pvc + connector m16-4p
